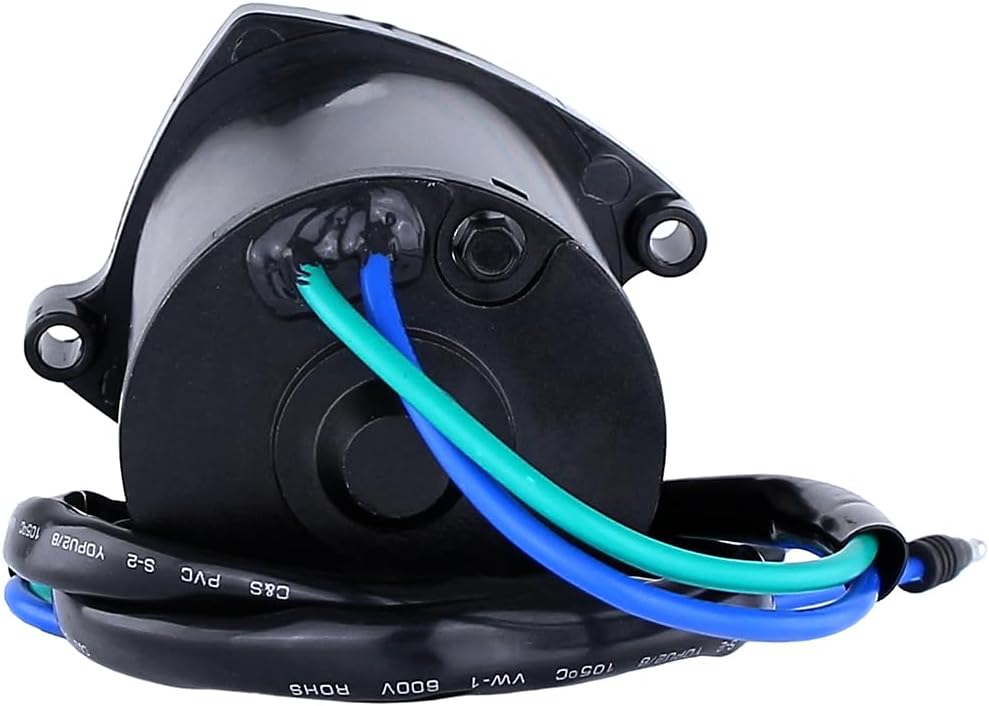

RAREELECTRICAL 12 Volt Tilt Trim Motor Compatible With 1994-2004 Mercury Mariner Xr6 Magnum Iii 175-250 Hp Outboard 828708 878265A1 878265A4 8M0031551 2-Wire Motor

12V Tilt and Trim Motor for Mercury Mariner Outboard 135-250 HP Direct replacement tilt and trim motor for Mercury and Mariner V6 outboard motors. This 12-volt reversible DC motor features a tanged shaft design with 2-wire bullet connector hookup for simple plug-and-play installation. SAE J1171 Marine Ignition Protection Certified for safe operation. Includes O-ring seal for watertight fit. 2-bolt mounting pattern with 1/4 inch mounting holes. OEM PART NUMBERS: Mercury Marine: 828708 Mercury Marine: 828708T Mercury Marine: 878265A1 Mercury Marine: 878265A4 Mercury Marine: 8M0031551 (current supersession) Sierra Marine: 18-6773 ARCO Marine: 6250 SPECIFICATIONS: Voltage: 12V DC Rotation: Reversible (CW/CCW) Housing OD: 75mm (2.953 in) Overall Length: 124.7mm (4.909 in) Shaft OD: 8mm (0.315 in) Shaft Type: Tanged Shaft Connection: 2-Wire with Bullet Connectors Wire Length: 3-1/2 Foot Harness Mounting: 2-Bolt, 6.5mm ID Holes, 1/4 in Weight: 3.46 lbs (1.57 kg) Includes: O-Ring Seal Certification: SAE J1171 Marine Ignition Protection APPLICATIONS: Mercury/Mariner Outboard 135 HP (1992-2006) Mercury/Mariner Outboard 150 HP (1992-2006) Mercury/Mariner Outboard 175 HP (1992-2006) Mercury/Mariner Outboard 200 HP (1992-2006) Mercury/Mariner Outboard 225 HP (1994-2006) Mercury/Mariner Outboard 250 HP (1996-2006) Mercury/Mariner 150 XR6, XRG, Magnum III (1994-2004) Mercury/Mariner Jet 105-140 HP Mercury Optimax 200 HP (2003), Optimax 225 HP (2000+) ⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment.

• Compatible with MERCURY, UTB. Please verify your OEM part number from your original unit to help ensure fitment.
• Replaces: Oem Part Numbers: / Mercury Marine: 828708 (Original) / Mercury Marine: 828708T / Mercury Marine: 878265A1 / Mercury Marine: 878265A4 / Mercury Marine: 8M0031551 (Current Supersession) / Sierra Marine: 18-6773 / Arco Marine: 6250 / Specifications: / Voltage: 12V Dc / Rotation: Reversible (Cw/Ccw) / Housing Od: 75Mm (2.953 In) / Overall Length: 124.7Mm (4.909 In) / Shaft Od: 8Mm (0.315 In) / Shaft Type: Tanged Shaft / Connection: 2-Wire
• Applications: Mercury Outboard Motors: / 135 Hp: / Mercury 135 Hp Outboard - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 / All Models, V6, 2-Wire Bullet Connector / 150 Hp: / Mercury 150 Hp Outboard - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 / All Models, V6, 2-Wire Bullet Connector / 175 Hp: / Mercury 175 Hp Outboard - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000,
• Applications: 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 / All Models, V6, 2-Wire Bullet Connector / / 200 Hp: / Mercury 200 Hp Outboard - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 / Mercury Optimax 200 Hp - 2003 / All Models, V6, 2-Wire Bullet Connector / / 225 Hp: / Mercury 225 Hp Outboard - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 / Mercury Optimax 225 Hp -...
• Trim Motor - Voltage: 12V Source: Aftermarket
